Efika 5200B Project
Capek Robot

in category Robotics
proposed by knickels on 26th April 2007 (accepted on 27th April 2006)
Project Summary
Existant Hardware

Capek (formerly TCR, or the Trash Can Robot - named for its appearance) is designed for navigating in indoor office environments. It was concieved after two or three years of student groups spending the entire year creating a platform for robotics research, only to find that;

  • the time was all gone, with no real research accomplished, and
  • the platform didn't have enough payload to carry anything except its own infrastructure.

    So this project was started by a couple of mechanical engineers. The original specifications included:

  • actuators selected for a minimum floor speed of 50cm/sec.
  • shaft encoders on the wheels
  • surplus payload of 10kg
  • power system designed for ship/shore power, with easy switchover and battery charging
  • a bumper system that would detect, to within +/- 30deg, the presence and location of a ``soft'' collision.
  • a hardware disable of the motor driver on bump (irrespective of computer commands)

    Note that no computer control was included in the first pass.

    In later semesters, different parts were added;

  • a low-level (PIC) microcontroller, with "manual" steering inputs, to implement PID control of the motors
  • a ring of eight Polaroid sonar sensors, with Timer/Counter interfacing
  • a PC-104-based linux computer, with Advanced Digital Logic's DIO-48S digital I/O card to interface to all of these.

    Current Status

  • The drive train (motors, H-bridges, shaft encoders) are working at 100%. They were designed with modular connectors (just 25-pin d-subs), so swapping out other controllers is no problem. The payload specs were proven out by lugging a 10kg stack of books across the floor (in addition to the 25kg robot!)

  • The Power system is pretty hacky - currently running on all 12VDC. The hot-swap circuitry was never designed well, nor the automatic connection of the battery charger to the battery when on short power.
  • The electronics (i.e. switches) for the bumper system are installed. The hardware bumpers were never designed. The interface to the H-bridges were not completed.
  • The Gentoo-based kernel drivers required to interface with the DIO-48S are working. We ended up interfacing through single-bit and whole-byte /devfs devices to do IPC between the user-mode and protected-mode program. This design has always felt like a hack to me.
  • The Polaroid sonar modules require that the controller do timing. This has been done with standalone 68HC11 and OOPIC boards at various times, but is not integrated with the main controller.


  • Replace the PC/104-based stack with an EFIKA.
  • Run QNX on the EFIKA to ensure real-time response, and avoid the user-mode/protected mode issues that linux has.
  • Replace the Polaroid sonar sensors with Devantech SRF02 modules. These do the timing themselves, and communicate via the I2C bus. Thus, I should be able to make a thread in QNX to handle this, separate from my main thread.
  • Use an OOPIC to do PID control for the H-bridge/Encoder circuits (i.e. wheels). This should accept commands from the EFIKA via the I2C bus.
  • Complete the bumper circuit, wire to the H-bridge brakes. Would like to get this status back up to the main computer. (May monitor with the OOPIC and send status back to the EFIKA via the I2C bus.)
  • Actually get some students doing robotics research with this thing :)
  • Project Blog Entries

      Capek resurrected - with SUSE/Efika plus usb/i2c
    posted by knickels on 8th July 2009

    OK, after a lot of time trying to teach myself to write device drivers in QNX, I'm jumping back into the Linux world.
    I've stripped the bot down to the aluminium, and am building it back up one part at a time.

    Hardware setup - EFIKA running openSUSE10.3 (thanks Matt!), with devantech usbi2c dongle. Connected to the i2c bus is a devantech md23 motor driver with two MEB30 drive motors. I've got eight srf02 sonars waiting in line, as well as a usb camera.

    Software setup - one nice thing about this, from a practical point of view, is that it's all user-space. The FTDI FT232R USB chip in the USBI2C has a linux kernel driver, so it's just a serial port interface.

    Linux has a pretty nice high-resolution timer interface, new since I've delved very deeply into system-level programming with it. So I've got three threads, with shared memory spaces for inter-thread coms. The executive thread is a command processor, and (of course) spends most of it's time blocked waiting for user i/o. I've currently got a 10Hz process and a 1Hz process. Each process runs a set of FSMs (Finite State Machines). Each FSM is responsible for handling one task or piece of hardware. The FSM-based approach to robotics software is a bit hard to get used to, but is very powerful and expandable - I learned about it while on sabattical at NASA's Jet Propulsion Laboratory (Hi, Hrand!)

    The software is a classic three-layer (plus system support) architecture. A device-driver level implements low-level interface algorithms and being largely independent from other modules (e.g. a set of md23 read/write routines). A device-layer level abstracts and utilizes these low-level routines into a FSM architecture that is called repeatedly. For example, one FSM monitors each motor, and utilizes md23 routines to start/stop/change speed for the motors. Finally, an application layer will coordinate these independent FSMs to perform useful work.

    Current status

    • System support for 10Hz, 1Hz, shm, signal handling, timestruct, and command processing working. Monitoring and alarming of system overload on 1/10Hz command queues.
    • DDs working for md23 and srf02
    • DL FSM working for MotorControl, written for SonarCtrl
    • No APL layer yet (unless you count command processing)
      QNX Resource Managers
    posted by knickels on 18th December 2007

    I've been walking through the QNX documentation, writing (ok, copying) resource managers. Here is where the excellent design of the QNX infrastucture is starting to make itself known. Within a couple of days, I've implemented

    • The example single-threaded resource manager (implementing /dev/null)
    • The exmaple multi-threaded resource manager (implementing /dev/null)
    • A multi-threaded resource manager with custom io_read and io_write functions, that takes over multiple names in the /dev/ namespace.

    The next step is, of course, to design and implement a resource manager for the Devantech USBI2C or the Diolan U2C-12. Probably the Diolan, since I've got two student groups using this unit this coming semester.
      QNX is unstuck
    posted by knickels on 4th December 2007

    This actually happened on Oct 9, but the end of the semester has been typically brutal.

    Turns out that the big problem with getting the Ethernet driver to work is that it was compiled into my QNX image (AURA.ELF) instead of on the HD. So to get it to work, I just deleted it from my QNX image in momentics and copied it to the EFIKA hard drive, then rebooted. The gory details are below.

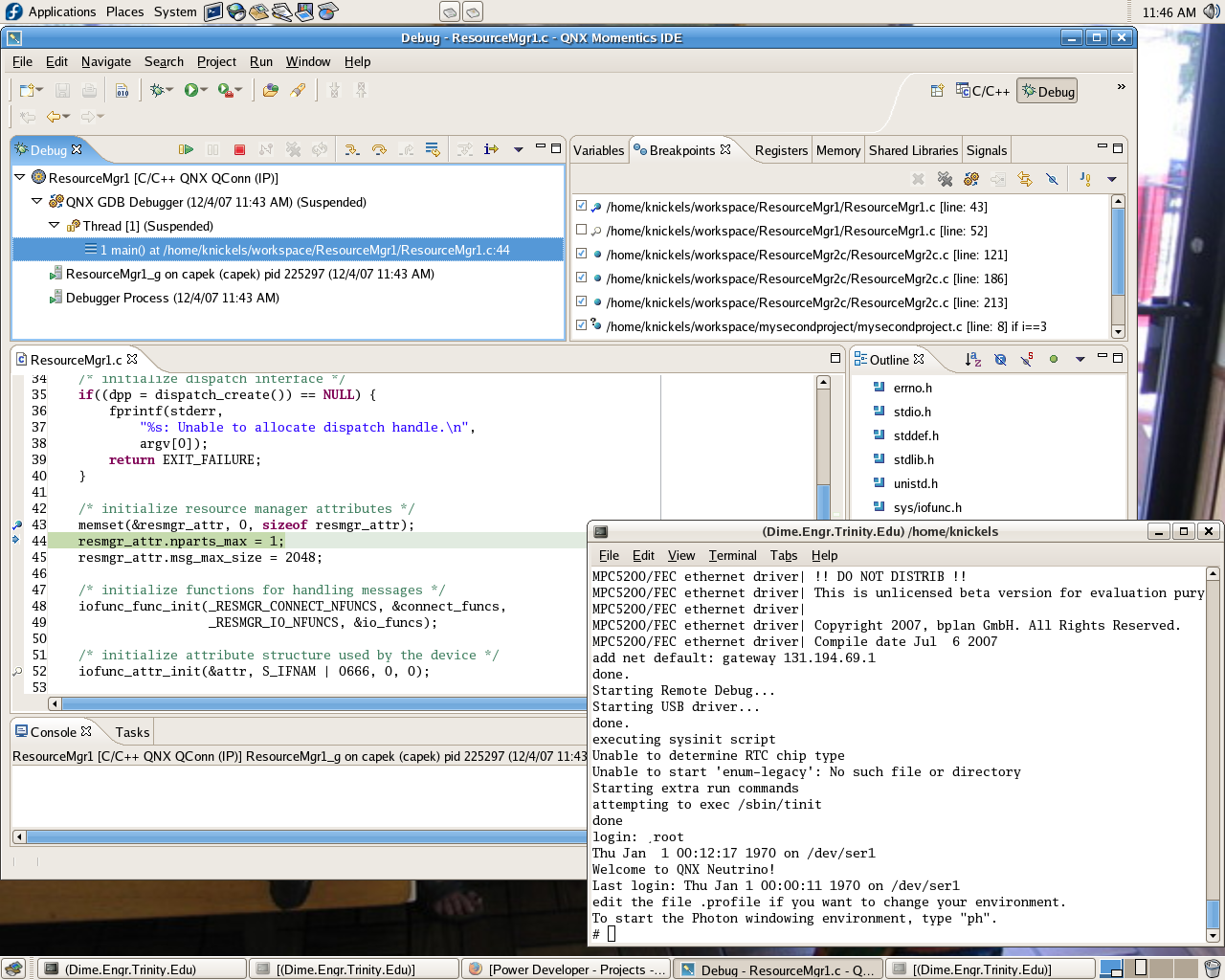

    Now, I can use momentics on my linux host to code programs for the efika, and have them run in a graphical debugger, with the execution happening on the efika! Yea!
